MPO Jumper Color Recognition + Fiber Arranging +Ribbonizing Automation Equipment

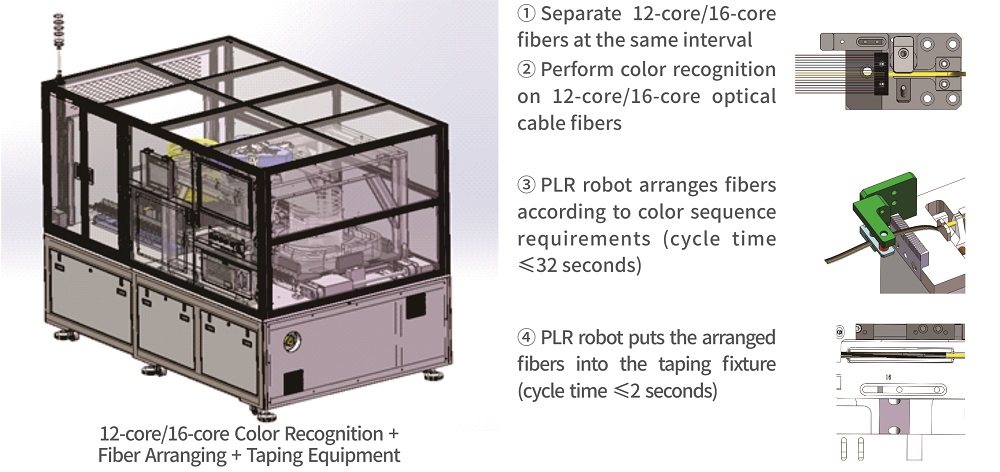

Equipment Functions
- Color-coded fiber diameter：Φ00.25mm
- ● Vision performs color recognition and positioning for 12-core/16-core fibers;
- ● Guides the robot for automated fiber arrangement and ribbonizing;
- ● Performs visual inspection on the colored fibers after ribbonizing.
- MPO Jumper Finished Product
Project Challenges
- 16-core color recognition：
- ● similar colors are prone to misidentification;
- ● Same color may vary between batches from the same manufacturer;
- ● Color differences exist among fibers from different suppliers;
- ● Color recognition yield rate must reach > 99.5%
- Fiber separating： It is very difficult to evenly spread 12 or 16 fibers with equal spacing with a yield rate >99.5%
-
- Fiber arranging： Completing 16-core fiber arranging within 32 seconds imposes high requirements on therobot's trajectory design.
- Fiber State Before Arranging
Technical Parameters
- ● Overall yield rate：≥99.5%
- Value contribution：Improved yield and efficiency, and eliminated reliance on senior skilled workers for the fiber arranging process.
-
- Flexibility：Supports simultaneous automation for up to 18 jumper connectors (coil weight <100 kg), and enables data traceability.
