E-Paper Module FPC Flexible Insertion Solution
Customer Pain Points
- ● EPD/Eink E-paper module glass substrate is thin, fragile, and easily damaged;
- ● FPC is soft and prone to misalignment, resulting in insufficient stability during manual insertion;
- ● A wide variety of product types (e-books, electronic shelf labels, wearable e-ink displays) with small batch sizes makes changeover costly for tranditional automation equipment.
Solution
● 3D vision-guided parallel link robot for precise gripping and alignment;

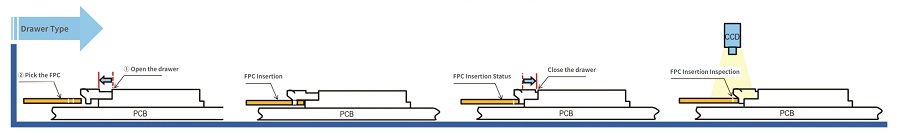

● Compatible with various connector structures such as drawer-type and flip-type designs;
● Supports small-batch, multi-variety flexible production, with rapid product overchanges.
Core Data
● ≤3.0s/pcs Single piece insertion cycle time
● ≥99.5% Stable production yield
Project Value
- ● Breakthrough the bottleneck of manual insertion for EPD+PCB, reduce the risk of screen body damage andribbon cable breakage, and improve assembly yield.
⬆ Key Action: Precisely grip the EPD electronic paper module FP, simultaneously open the PCB connector, and the robot performs precise insertion
EPD Automatic Assembly Process
● EPD loading → Apply double-sided tape → PCB loading → Robotic insertion → Fold-back attachment → Visual inspection
● Core workstation: the robot performs high-precision flexible insertion of EPD and PCB, replacing manualinsertion,
improving assembly consistency and reducing damage risk.
