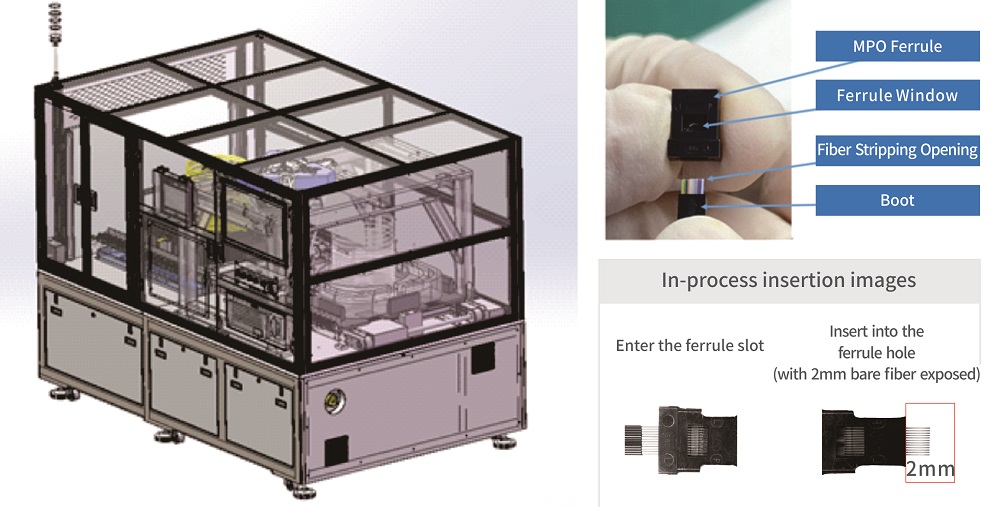

12-Core MPO Jumper Assembly Automation Equipment
Equipment Functions
- Bare-fiber diameter: 0.125 mm; ferrule hole diameter: 0.1256 mm
- ● Visual positioning of the MT ferrule;
- ● Guides the robot for automated insertion;
- ● Performs vision inspection after insertion to verify the assembly state.
- MPO Jumper Finished Product
Project Challenges
- ● 12 fibers need to be inserted into the ferrule hole with a specific curvature;
- ● The fiber and ferrule hole are a tight fit, with only a 0.6 um clearance.
Technical Parameters
- ● Guiding accuracy：0.6um
- ● Yield rate：≥99.5%
- ● Assembly speed：5s/pcs
-
- Value Contribution：Improves yield and efficiency, andeliminates the reliance on skilled technicians for the fiber-threading process.
-
- Flexibility：Compatible with a variety of jumper assemblyvariants (coil weight < 100 kg), and enables data traceability.

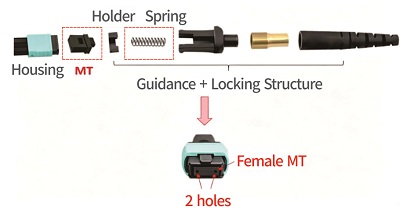

- Among them, spring insertion and MT ferrule assembly can be automated by a PLR robot
